Smart Heavy Pac 1210
SHP-1210-1145

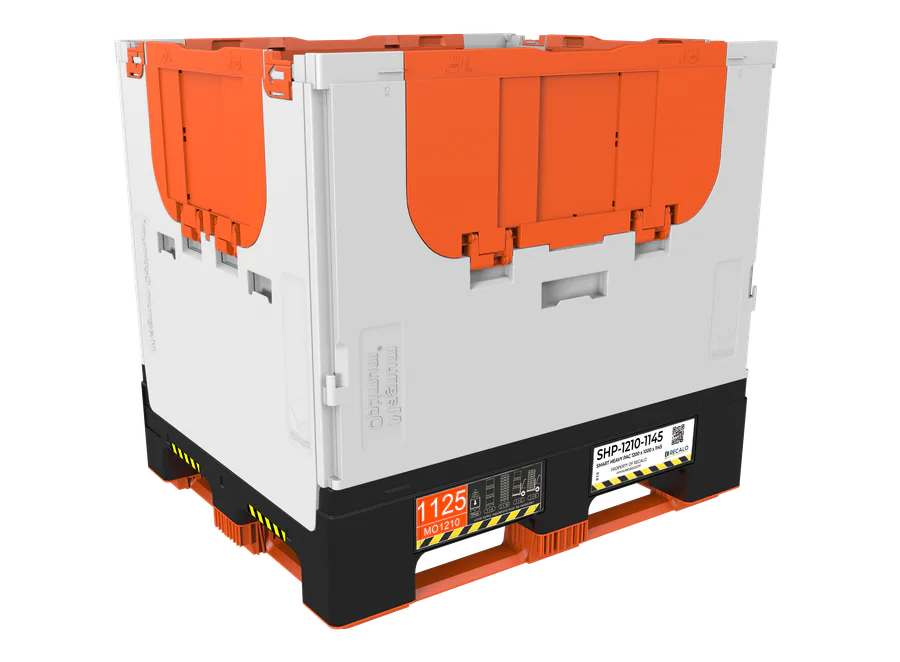

The 1200 × 1000 Smart Heavy Pac carries up to 750 kg and folds flat for the return trip — high capacity on the way out, a fraction of the volume on the way back, and hundreds of reuse cycles instead of waste.
Why this carrier
Compact on return

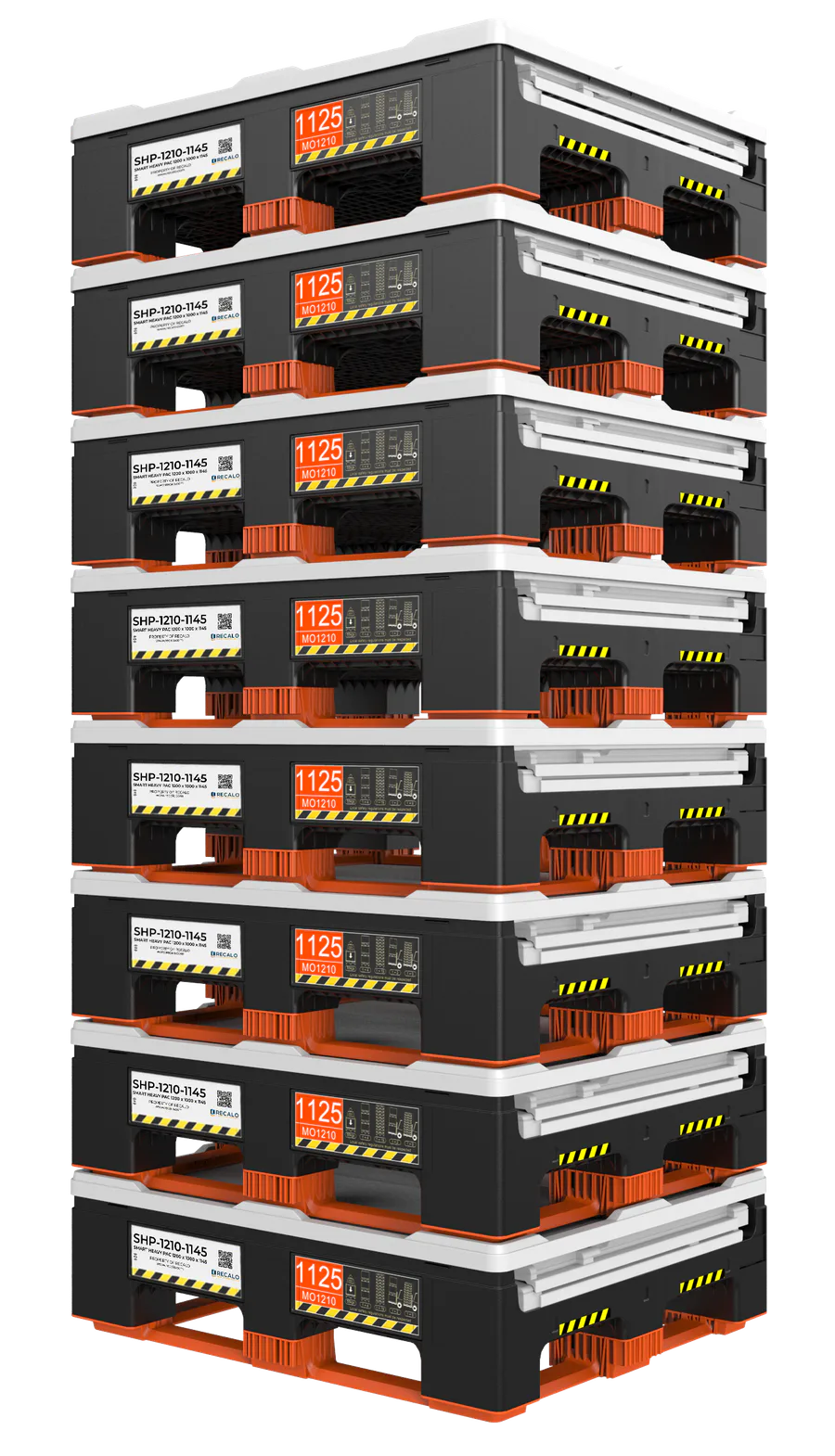

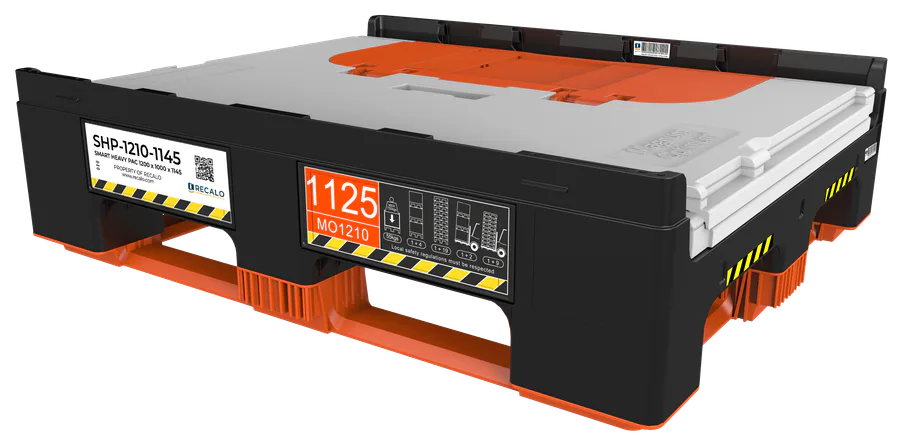

Folds flat — up to 10 folded units stack for return transport, so you ship far fewer empty carriers back.
750 kg, built tough
Carries up to 750 kg with a static stacking load up to 3200 kg (1+4) — robust for many cycles.
Flexible partitioning
Add Smart Heavy Shelf (SHS-1210) dividers to split the interior into two levels — up to 23 per container.
Tracked via SAM
Dual barcode + RFID for bulk scanning and full transparency in the RECALO SAM system.
Technical specifications
| Property | Value |
|---|---|
| External dimensions, assembled (L × W × H) | 1200 × 1000 × 1145 mm |
| Usable internal dimensions (L × W × H) | 1140 × 940 × 940 mm |
| External dimensions, folded (L × W × H) | 1209 × 1007 × 370,5 mm |
| Incremental height, assembled / folded | 1117 / 342,5 mm |
| Stacking height, assembled (qty / height) | 2 / 2262 mm |
| Stacking height, folded (qty / height) | 8 / 2768 mm |
| Tare weight | 64,25 kg |
| Volume | 1007 L |
| Payload | 750 kg |
| Material | Bottom, walls, flaps, runners, SHS: PP; Closures, locking pin: POM; Label holder, lid: HDPE |
| Static stacking load (1+4) | 3200 kg |
| Dynamic stacking load (1+1) | 1600 kg |
| Smart Heavy Shelf (L × W × H / weight) | 1132 × 932 × 30,5 mm / ca. 10,47 kg |
External dimensions, assembled (L × W × H)
Usable internal dimensions (L × W × H)
External dimensions, folded (L × W × H)
Incremental height, assembled / folded
Stacking height, assembled (qty / height)
Stacking height, folded (qty / height)
Tare weight
Volume
Material
Smart Heavy Shelf (L × W × H / weight)*Due to the manufacturing process, this product is subject to weight and dimensional tolerances of ± 3%.
Technical drawings
Where it fits
Heavy, dense goods
For heavy dry and bulk goods: up to 750 kg payload, a robust structure and high static stacking load (up to 3200 kg, 1+4).
When blocking is a risk
Robust Smart Heavy Shelf dividers (SHS-1210) split the 1200 × 1000 interior into two equal levels and prevent blocking as well as load and pressure damage. (Lighter goods without a blocking risk? → Smart Light Pac.)
Used across all FMCG industries
Food, cosmetics, beverages, pharma, chemical, household and hygiene.
See all industriesComplete the system
Accessories and add-ons that extend this carrier.
Dimensions
PayloadFAQ
Frequently asked questions
How compact does it fold?
Can the inside be partitioned?
See what this carrier saves you.
Talk to a RECALO expert about the right load carrier for your supply chain.
