Smart Heavy Pac 1208

SHP-1208-984

Stop shipping and storing air. The Smart Heavy Pac is a European-standard foldable large container that collapses 3.2:1 for the return trip — high capacity on the way out, a fraction of the volume on the way back, and hundreds of reuse cycles instead of waste.

Talk to our experts

Why this carrier

Folds 3.2:1

Less return volume, lower cost — collapses to a 3.2:1 ratio so you ship far fewer empty units back.

750 kg, built tough

Carries up to 750 kg with a static stacking load up to 3200 kg (1+4) — robust for many cycles.

Flexible partitioning

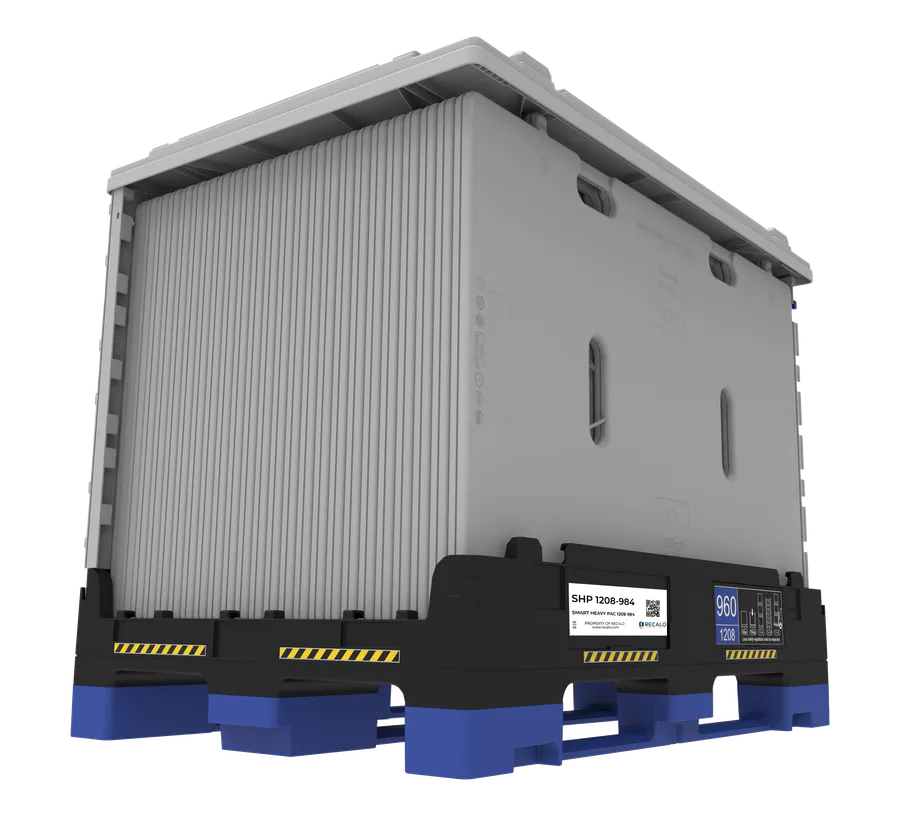

Add Smart Heavy Shelf dividers for 1/2, 1/3 or 2/3 levels — up to 23 per container.

Tracked via SAM

Dual barcode + RFID for bulk scanning and full transparency in the RECALO SAM system.

Technical specifications

Property	Value

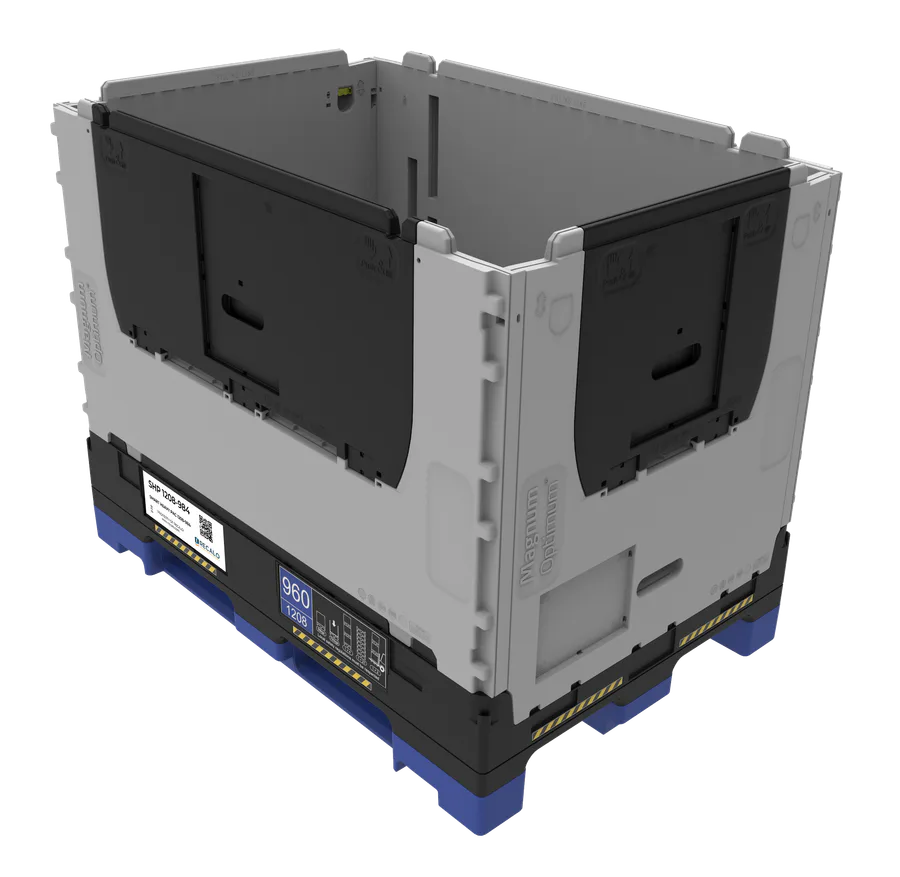

External dimensions, assembled (L × W × H)	1200 × 800 × 984 mm
Usable internal dimensions (L × W × H)	1142 × 742 × 792 mm

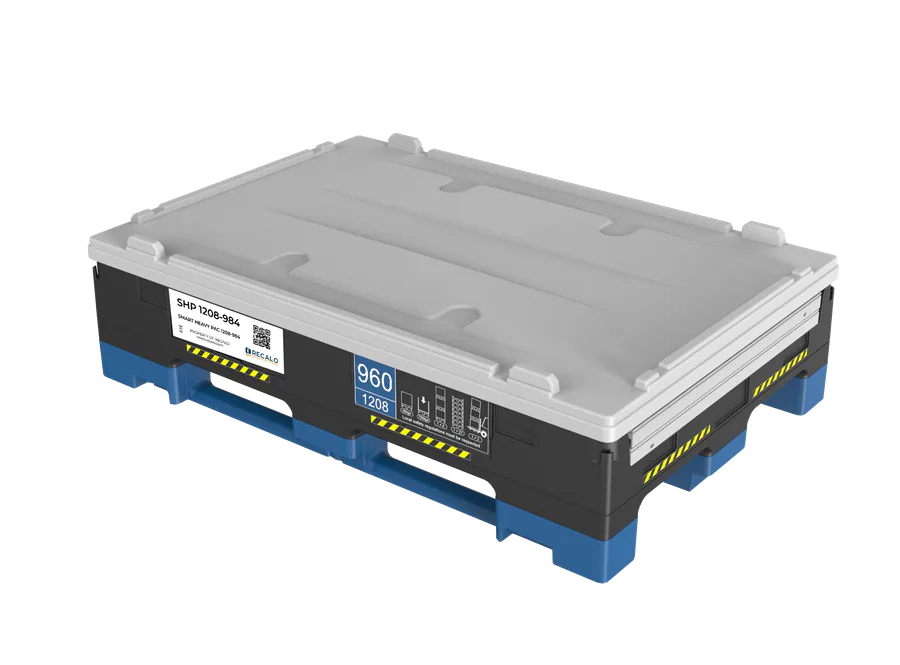

External dimensions, folded (L × W × H)	1200 × 800 × 321 mm
Incremental height, assembled / folded	955 / 291 mm

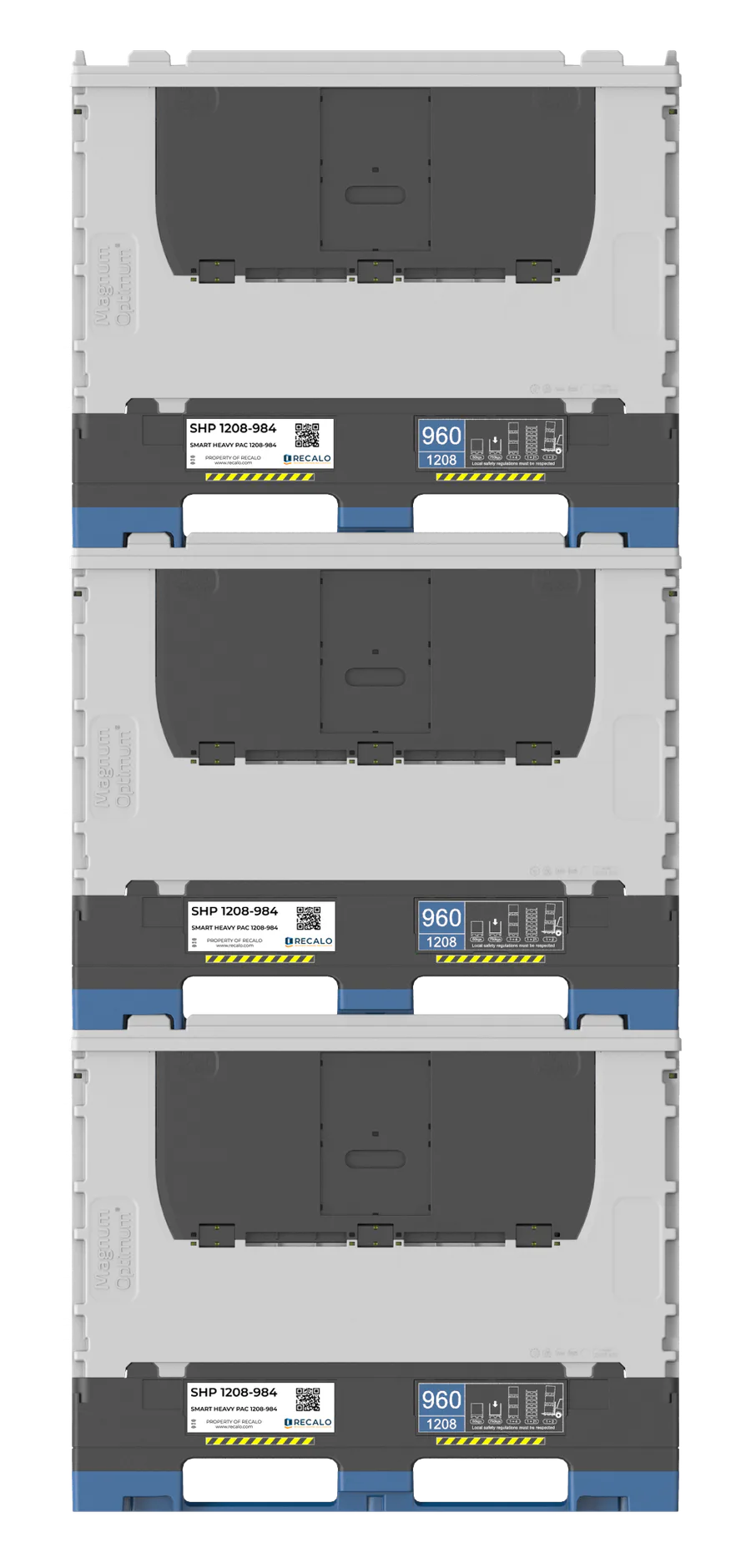

Stacking height, assembled (qty / height)	3 / 2895 mm
Stacking height, folded (qty / height)	10 / 2950 mm
Tare weight	54,3 kg
Volume	ca. 671 L
Payload	750 kg
Material	Bottom, walls, flaps, lid, runners, SHS: PP; Closures, locking pin: POM; Label holder: HDPE
Static stacking load (1+4)	3200 kg
Dynamic stacking load (1+1)	1600 kg

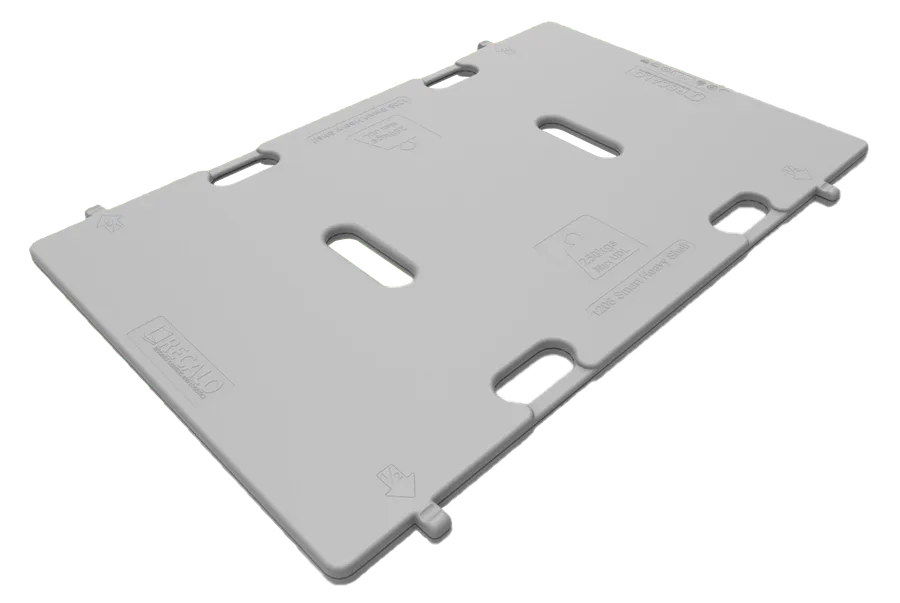

Smart Heavy Shelf (L × W × H / weight)	1132 × 732 × 30,5 mm / ca. 9,65 kg

*Due to the manufacturing process, this product is subject to dimensional tolerances of ± 4 mm.

Technical drawings

smart-heavy-pac-1208-984 technical drawing — front (metric) — Front (without lid)

Where it fits

Heavy, dense goods

For heavy dry and bulk goods: up to 750 kg payload, a robust structure and high static stacking load (up to 3200 kg, 1+4).

When blocking is a risk

Robust Smart Heavy Shelf dividers (SHS) split the interior into 1/2, 1/3 or 2/3 levels and prevent blocking as well as load and pressure damage. (Lighter goods without a blocking risk? → Smart Light Pac.)
