Smart Fluid Pac 1208
SFP-1208-918-OF
Move liquids without moving empty tanks. The Smart Fluid Pac is a European-standard foldable IBC built for liquids — it collapses 2.6:1 for return transport, is automation-ready, and keeps your product clean and secure end to end.
Why this carrier
Made for liquids
For food, beverage, cosmetics, pharma, chemical and adhesive products — hygienic and secure.

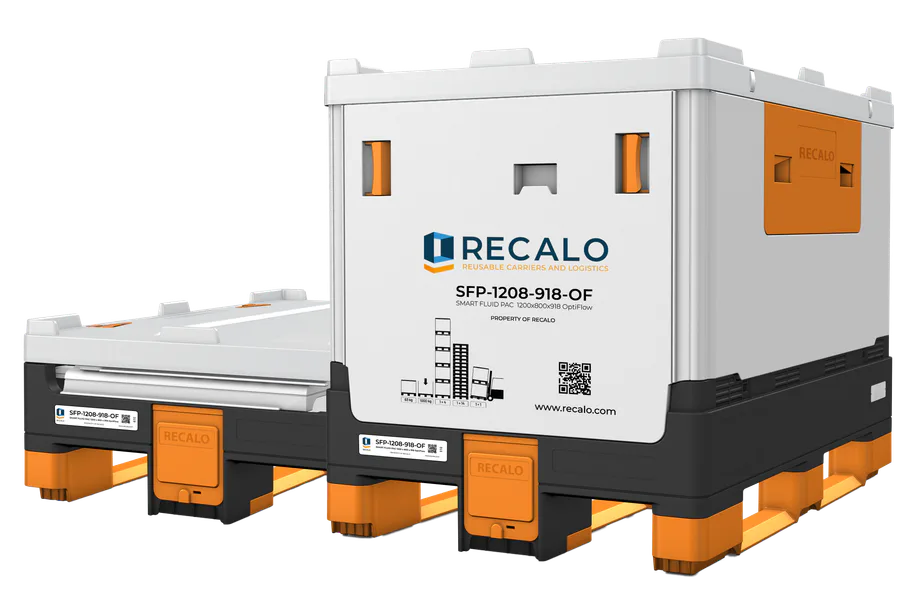

Folds 2.6:1
Collapses for the return trip to cut empty-haul volume and logistics cost.
Clean dispensing
Automatic discharge system, tamper-proof cover and a liquid-level indicator.
Tracked via SAM
Dual barcode + RFID for full transparency across the pool.
Technical specifications
| Property | Value |
|---|---|
| External dimensions, assembled (L × W × H) | 1200 × 800 × 918 mm |
| Usable internal dimensions (L × W × H) | 1130 × 724 × 718 mm |

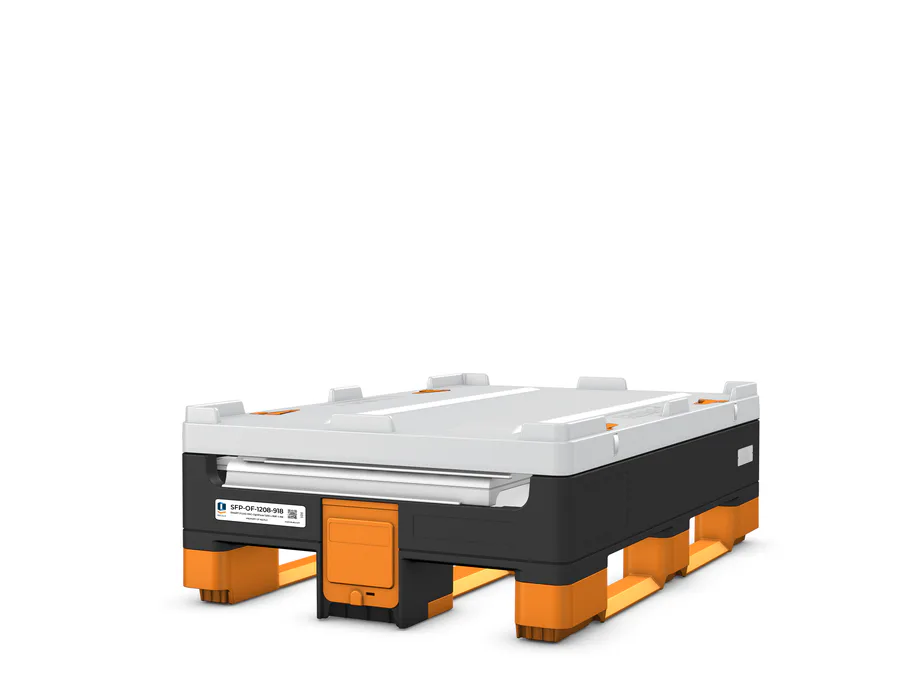

| External dimensions, folded (L × W × H) | 1200 × 800 × 372 mm |
| Incremental height, assembled / folded | 888 / 342 mm |
| Dynamic stacking height, assembled (qty / height) | 2 / 1806 mm |
| Static stacking height, assembled (qty / height) | 5 / 4470 mm |
| Dynamic stacking height, folded (qty / height) | 8 / 2766 mm |
| Static stacking height, folded (qty / height) | 15 / 5160 mm |
| Tare weight | 63 kg |
| Volume | ca. 560 L |
| Payload | 1000 kg |
| Material | PP |
| Folding ratio | 2,6 : 1 |
| Temperature resistance | −20 to +50 °C |
| Static stacking load (1+4) | 5400 kg |
| Dynamic stacking load (1+1) | 2160 kg |
External dimensions, assembled (L × W × H)
Usable internal dimensions (L × W × H)
External dimensions, folded (L × W × H)
Incremental height, assembled / folded
Dynamic stacking height, assembled (qty / height)
Dynamic stacking height, folded (qty / height)
Tare weight
Volume
Material
Folding ratio
Temperature resistance*Due to the manufacturing process, this product is subject to weight and dimensional tolerances. Dimensional tolerances: ± 2 mm, weight tolerance: ± 1.5 kg.
Technical drawings
Where it fits
Liquid food
Dairy products, liquid egg, tomato/passata, mayonnaise, sauces, edible oils and liquid ingredients.
Liquid non-food
Cosmetics, adhesives, non-hazardous chemicals, household products and pharmaceuticals.
Complete the system
Accessories and add-ons that extend this carrier.
Filling & dispensing
Smart Fluid Pac Filling Bridge
SFP-FB
A stainless-steel bridge that spans the open Smart Fluid Pac and holds the liner fitment in place during filling, so the filling head stays centred and the liner cannot shift.
Product protection
Smart Fluid Pac Form-Fit Liners
SFP-FL
A form-fit liner that lines the Smart Fluid Pac to its full internal shape for maximum usable volume and clean discharge — configured to your application: filling type, film material and layer combination, and the pre-fitted fitments and valves you require.
Smart Fluid Pac Pillow Liners
SFP-PL
A flexible pillow-style liner for the Smart Fluid Pac, configured to your application: choose the filling type, film material and layer combination, plus the pre-fitted fitments and bottom-discharge valves you need. A hygienic single-use barrier that keeps the reusable carrier clean across food, beverage, cosmetic, pharmaceutical and chemical applications.
Emptying
Smart Fluid Pac Air Support
SFP-AS
An air-support system that gently pressurises the liner to assist a clean, complete discharge.
Smart Fluid Pac Manual Squeezer
SFP-MS
A manual squeezer for pressing residual liquid out of the liner where no power or compressed air is available.
Smart Fluid Pac Pneumatic Squeezer
SFP-PS
A pneumatic squeezer that uses compressed air to press residual liquid out of the liner for near-complete emptying.
Smart Fluid Pac Electric Squeezer
SFP-ES
An electric squeezer that presses residual liquid out of the liner for near-complete emptying and minimal product loss.
Temperature
Smart Fluid Pac Heating Mat Disposable
SFP-HD
A single-use heating mat for one-off temperature conditioning of viscous or crystallising products.
Smart Fluid Pac Heating Mat Multi
SFP-HM
A reusable multi-use heating mat that brings viscous or crystallising products back to a pumpable temperature.
FAQ
Frequently asked questions
How is the liquid discharged?
Is it suitable for automated lines?
